Mid-efficiency air filters such as F7 (ISO ePM2.5 65 %, ≈ MERV 13) have shifted from “nice to have” to baseline protection. A new Science Advances study shows that over one billion people experienced at least one day each year of unhealthy indoor PM 2.5 from wildfire smoke between 2003 and 2022, proving that simply shutting windows is no longer enough.
To blunt that threat, the U.S. EPA’s May 2025 “Best Practices Guide for Indoor Air Quality During Wildland Fire Smoke Events” urges commercial and public buildings to upgrade to MERV 13/F7 or better whenever the outdoor AQI turns hazardous.
Day-to-day IAQ targets are also tightening. The WHO 2021 Air-Quality Guideline slashed the annual PM 2.5 limit to just 5 µg m-³, and many ESG scorecards are already adopting that threshold.
ASHRAE Standard 241-2023 introduces the “Equivalent Clean Airflow per person” metric. When buildings can’t triple outdoor air, adding an F7 stage is the most cost-effective path to compliance without crushing fan-energy budgets.

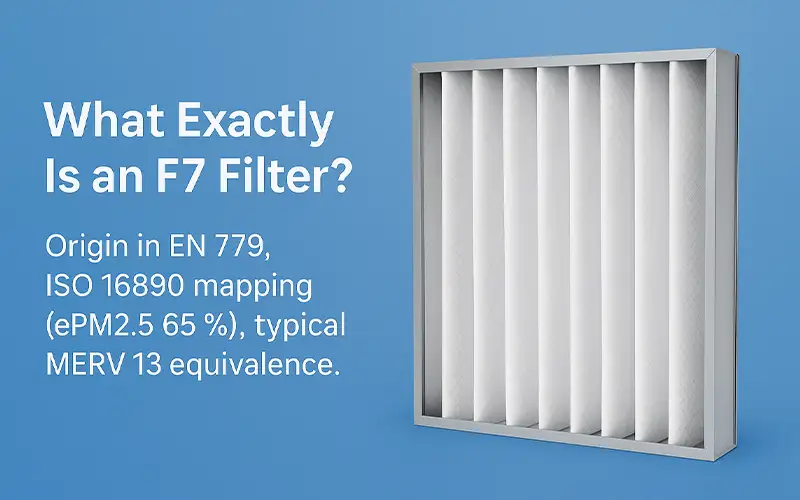

An F7 filter is a mid-efficiency air-filter grade established under the now-retired European standard EN 779. In that system, “F” denoted “fine dust,” and an F7 unit had to remove roughly 80–90 % of 0.4-micron test particles while maintaining at least 35 % minimum efficiency across its service life.
This positioned F7 squarely between coarse pre-filters (G grades) and high-efficiency options such as F9 or true HEPA, striking a balance between particle capture and manageable pressure drop.
When the global ISO 16890 framework replaced EN 779 in 2016, filters began to be classified by their effectiveness against real-world particle sizes (PM₁, PM₂.₅, PM₁₀).
Under this newer metric, an F7 product maps to ISO ePM₂.₅ 65 %—meaning it removes at least 65 % of particles with diameters up to 2.5 µm, both when brand-new and after dust loading.
For North American buyers who still rely on ASHRAE Standard 52.2, the nearest counterpart is MERV 13.
Both F7 and MERV 13 filters capture a substantial share of fine particulate (typically 75–85 % of 0.3–1 µm particles) without the fan-energy penalty of higher grades.
This “sweet spot” performance explains why F7/ePM₂.₅ 65 %/MERV 13 is now widely recommended as the minimum baseline for meeting 2025 indoor-air-quality targets and the clean-airflow requirements introduced in ASHRAE 241.

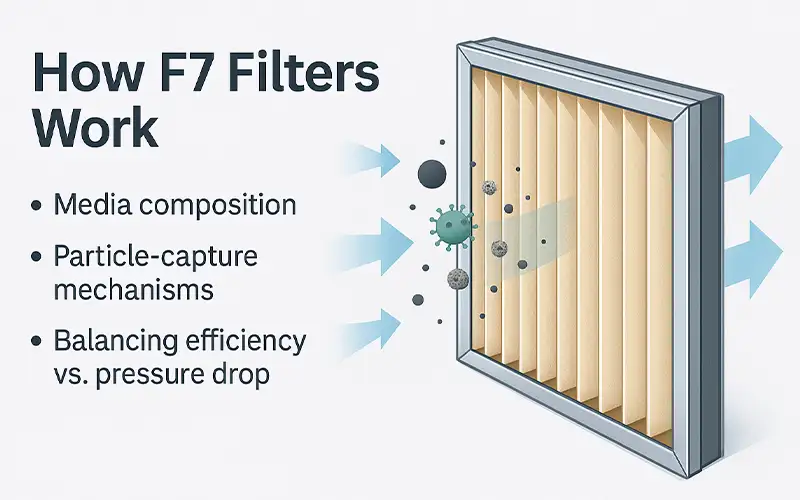

Most F7 elements use multi-layer synthetic polypropylene or fine micro-glass fibers. A coarse upstream layer traps larger debris, while a denser downstream layer targets sub-micron PM 2.5.
Some manufacturers add a nanofiber veil to raise ePM1 capture without thickening the sheet, and water-repellent binders maintain loft under humidity.
In pocket formats, the media is sewn or ultrasonic-welded into deep V-shaped bags; in mini-pleat versions it is glued into tight, accordion-style folds that maximize exposed surface.
An F7 relies on four physics principles that operate in parallel:
Inertial impaction knocks out coarse particles (> 1 µm) that can’t follow the air stream around fibers.
Interception grabs mid-size particles that brush against a fiber as flow lines curve.
Brownian diffusion becomes dominant below 0.5 µm, letting random motion drive particles into fibers.
Electrostatic attraction—either inherent or charge-enhanced—adds a long-range pull that boosts initial efficiency.
Together they deliver the ISO ePM2.5 65 % performance expected from the grade.
Raising particle capture typically means tighter fiber spacing, but that also increases resistance. Designers offset this trade-off by enlarging media area (deep bags, closely spaced pleats) and choosing low-diameter fibers that offer more surface at the same solidity.
The result is a mid-efficiency filter that delivers clean air with an initial pressure drop around 70–90 Pa—low enough to protect fan energy budgets while still meeting 2025 IAQ and ASHRAE 241 clean-airflow targets.

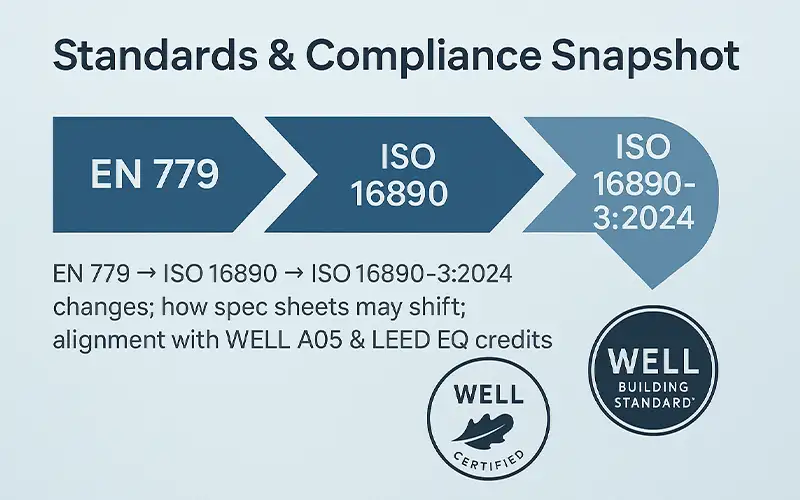

The original EN 779 grading system treated filters as G (coarse) or F (fine) based on how well they captured a 0.4 µm laboratory aerosol.
In 2016 the global ISO 16890 framework replaced that single-particle test with real-world particulate fractions—PM₁, PM₂.₅ and PM₁₀—making ePM₂.₅ 65 % the modern benchmark for what used to be called F7.
The change pushed manufacturers to verify performance over a broader size range and under both clean and dust-loaded conditions.
The 2024 amendment tightens gravimetric test protocols, requiring a uniform carbon-black loading dust and stricter humidity control.
Because the dust’s morphology differs from the old ASHRAE A2 test powder, some mid-efficiency products may show slightly lower ePM ratings or higher initial pressure drops on refreshed spec sheets.
Expect forward-looking datasheets to list both legacy and revised values until the market fully migrates.
WELL v2 Feature A05 calls for filters rated at least ISO ePM₂.₅ 65 % or MERV 13 in mechanical systems.
LEED v4.1 EQ Credit “Enhanced Indoor Air Quality Strategies” sets an identical threshold for recirculated air.
Upgrading to an ISO 16890-verified F7 filter therefore satisfies both programs without extra engineering, streamlining certification for owners targeting wellness and sustainability points.

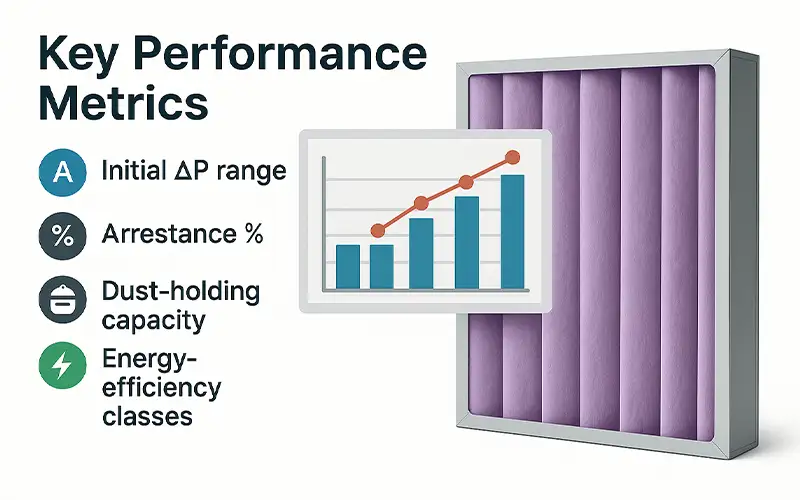

An F7 filter is engineered to start between 70 and 90 Pa at 0.9 m s⁻¹ face velocity, although pleated cassettes can dip into the mid-60 Pa range.
Tracking this baseline lets a facilities team set a sensible change-out alarm—commonly 2.0× the initial value—before the fan draws excess power.
Arrestance expresses the mass of synthetic dust a filter removes, mostly for coarse particles. While not the primary ISO 16890 indicator, F7 models typically post 95 % + arrestance, confirming they will protect fine media or coils downstream from grit and fibres.
Pocket designs average 450–600 g, and mini-pleats around 350–450 g, measured until the pressure drop reaches twice the initial figure.
Higher capacity translates to longer service life and fewer maintenance hours, but only when paired with an accurate ΔP gauge.
Eurovent’s 2019 programme groups filters by kilowatt-hours consumed over a year. Mid-efficiency products now hit class B or C; nanofibre or expanded-area versions can reach class A by shaving 15–20 Pa off the starting resistance.
Look for a curve that plots pressure drop versus airflow. The slope tells you how quickly resistance rises when the system runs above the rated velocity.
A shallow slope means better tolerance for variable-air-volume swings; a steep slope hints at early energy penalties. Pair the graph with the stated dust-holding capacity to estimate real-world replacement intervals and total kilowatt-hours per filter cycle.
From moisture-resistant pocket bags to low-ΔP mini-pleats, Cleanlink delivers a full range of ISO ePM2.5 70 % F7 filters tailored to the unique airflow, efficiency, and compliance demands of every industry.

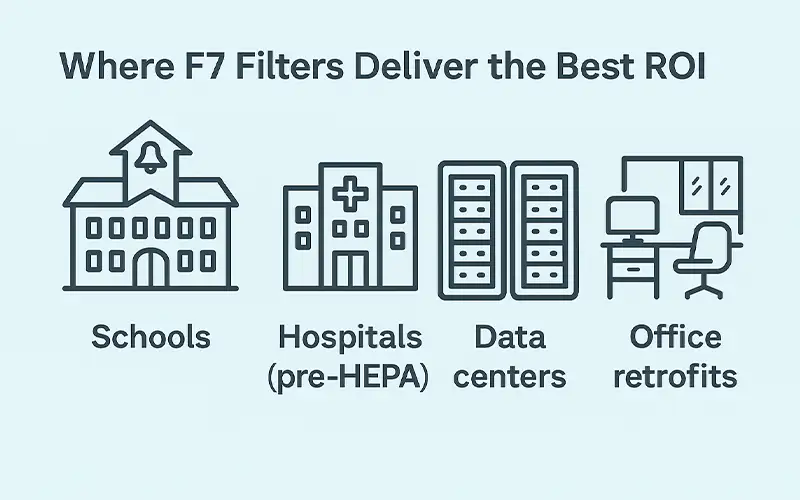

Swaps out basic pre-filters for F7 to cut fine-particle exposure by ~60 % and double filter life without straining legacy classroom AHUs.
Catches bulk dust before it reaches pricey H13 finals, halving HEPA change-outs and minimising operating-room downtime.
Low-ΔP F7 mini-pleats protect servers from PM while trimming HVAC power by ~2 %, a welcome win in energy-intensive facilities.
Offers ISO ePM₂.₅ 65 % compliance (≈ MERV 13) without costly fan upgrades, helping older VAV systems meet WELL A05 and LEED EQ goals.
Most K-12 HVAC units still rely on coarse MERV 8 pre-filters that cost little up front but load fast. Upgrading to F7 adds about $12 per filter but drops PM 2.5 by 60 %. Field data show a typical classroom AHU saves ≈ 400 kWh/year in fan energy versus an F9, while stretching the change-out cycle from 3 to 6 months. With electricity at $0.12 kWh, the extra filter cost is recovered in 7–8 months, and districts pocket lower asthma-related absentee costs thereafter.
Every gram of dust that sticks to an F7 pocket is a gram that never reaches the expensive H13 final stage. In surgical suites, doubling the life of a HEPA bank from 12 to 24 months avoids a $4,000 media replacement and 6 hours of shutdown labour. The incremental fan energy for an F7 adds only $90/year per AHU, yielding payback in under 4 months.
Server rooms prize low ΔP to curb rack-cooling costs. Switching from an F9 to an F7 mini-pleat trims initial pressure drop by 30 Pa, translating to ≈ 2 % HVAC power savings—roughly $3,200 annually on a 1 MW facility. The filter price delta is earned back in less than one quarter while keeping contamination below ISO 14644-1 Class 8 requirements.
Older VAV systems often lack fan horsepower for denser media. An F7 provides ISO ePM2.5 65 % efficiency without triggering motor upgrades. Energy-modeling studies show a 16 % drop in ventilation-related kWh compared with ramping up outdoor air to hit ASHRAE 241 targets. Material and labour costs are offset within one heating-cooling season, and tenants gain an immediate bump in WELL A05 and LEED EQ scores.

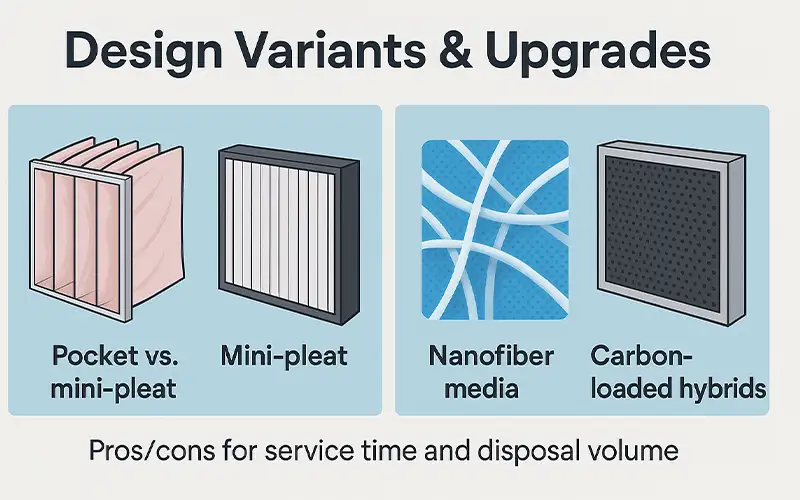

Deep, sewn or ultrasonically welded bags arranged in a staggered V.
High media area yields large dust-holding capacity and long change-out intervals.
Tolerates higher face velocities without a steep rise in ΔP.
Bulky—one spent pocket can occupy three times the disposal volume of a mini-pleat cassette.
Change-out takes longer because each bag must be seated in a retaining rail.
Tight accordion folds bonded into a rigid frame.
Compact size and molded gasket make swap-outs a 30-second task.
Lower disposal volume cuts landfill fees and eases handling in ceiling plenums.
Less dust-holding capacity; ΔP climbs faster in sandy or textile-fiber environments.
Pleat pack can bridge under high humidity if media spacing is too narrow.
An ultrathin nanofiber veil laminated to standard synthetic or glass fibers.
Raises ePM1 capture or trims initial resistance by 10–15 Pa without adding depth.
Helps pocket designs reach Eurovent class A energy ratings.
Higher material cost and a slight drop in dust-holding because the fine top layer loads first.
Activated-carbon granules or powder dispersed within the pleat or pocket structure.
Simultaneous PM and VOC removal, ideal for airports, kitchens, and urban façades.
Sorbent saturates faster than the particulate section, so service life is driven by odor breakthrough, not ΔP.
Added weight and potential local disposal rules for spent carbon media.

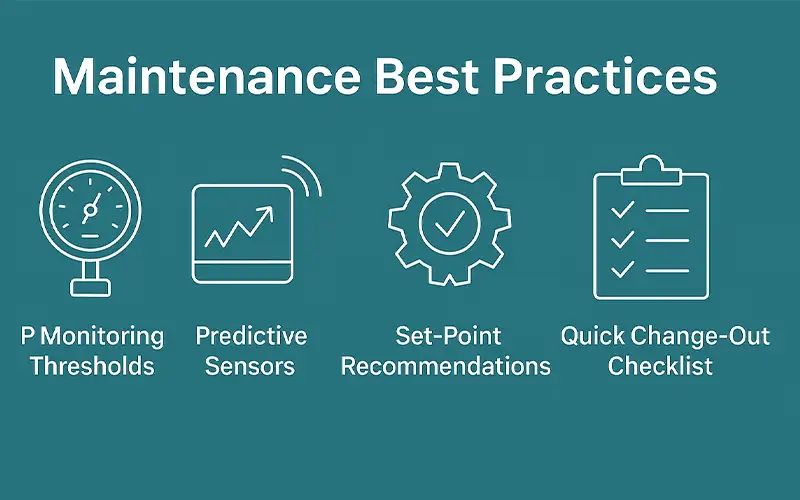

Record the initial ΔP when each new F7 filter is installed. Plan to replace at double that value or when ΔP reaches 200 Pa, whichever comes first. This prevents fan-energy spikes and preserves ISO ePM2.5 65 % efficiency.
Mount differential-pressure transducers across the filter bank and stream readings to your BMS every five minutes. A simple moving-average algorithm can forecast when ΔP will hit the change-out limit two weeks in advance, giving staff time to order replacements and schedule downtime.
Caution: initial ΔP × 1.6
Warning: initial ΔP × 1.8
Alarm/Change-out: initial ΔP × 2.0 or ≥ 200 Pa
Shut down the fan and verify zero pressure.
Log the filter ID and hours of service in your maintenance app.
Pull the filter straight out, bag it immediately to contain dust.
Vacuum the gasket seat and wipe the frame clean.
Insert the new F7 with airflow arrow correctly oriented; ensure a tight seal.
Reset the ΔP sensor baseline and note the date.
Dispose of the spent filter according to local regulations (landfill, recycling, or hazardous waste if carbon-loaded).
No. A properly sized F7 starts at about 70–90 Pa of pressure drop—well within the margin of most commercial supply fans. Because F7 media has far more surface area than a coarse pre-filter, the rise in ΔP is gradual; energy models show less than a 1 % increase in total HVAC power when moving from MERV 8 to F7 in a typical office AHU.
Not in spaces that require true HEPA performance (≥ 99.97 % at 0.3 µm). An F7 captures roughly 65 % of PM 2.5 and 85 % of larger dust, making it an excellent mid-filter or pre-filter. It protects downstream coils and extends HEPA life but cannot meet clean-room or iso-class specs on its own.
Track ΔP and replace at twice the initial value or at 200 Pa—whichever occurs first. In most schools and offices, that equates to 4–6 months for pocket filters and 3–4 months for mini-pleats; high-dust or wildfire-prone sites may need more frequent swaps.
F7 filters deliver a “sweet-spot” balance of efficiency and energy savings—capturing at least 65 % of PM 2.5, protecting downstream coils or HEPA stages, and meeting WELL A05, LEED EQ, and ASHRAE 241 clean-airflow targets without overloading fans.
By selecting the right design variant, tracking ΔP with predictive sensors, and following a disciplined change-out schedule, facilities can cut particulate levels, extend equipment life, and lower total HVAC spend.
