Whether it’s wildfire smoke drifting across continents or airborne viruses circulating in crowded buildings, the sub-micron particles you can’t see often pose the greatest health risks.
Scientists classify these contaminants—smaller than 1 micron in diameter—as ultra-fine particles. Because they penetrate deep into the lungs and even enter the bloodstream, ordinary MERV 8 or MERV 11 filters offer limited protection.
Enter MERV 16 filtration, engineered to remove at least 95 percent of particles in the critical 0.3–1 µm range.
In this guide, we’ll break down how MERV 16 filters achieve near-HEPA performance, compare them to lower ratings, and outline what you need to retrofit or spec an HVAC system that delivers true ultra-fine particle defense.

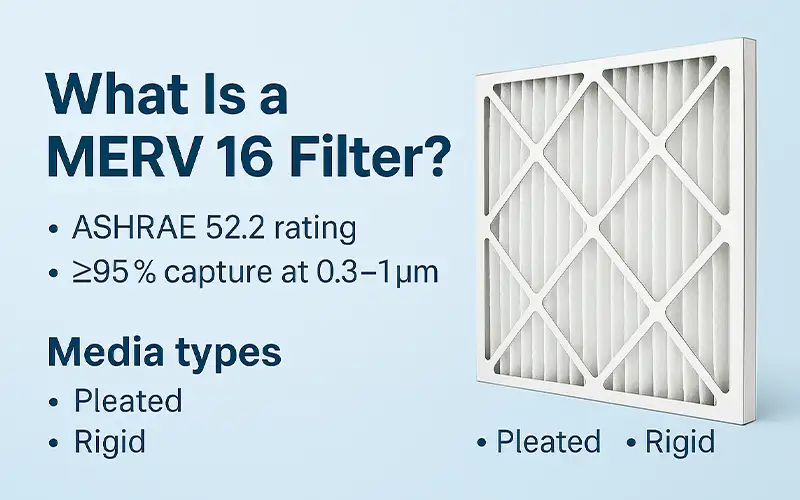

ASHRAE Standard 52.2 ranks HVAC filters from MERV 1 to 16 based on removal efficiency across three particle-size ranges.
A MERV 16 filter represents the top tier, verified to capture 95 percent or more of particles measuring 0.3–1 micron. This size bracket covers wildfire smoke, fine diesel soot, many airborne bacteria, and virus-laden aerosols—contaminants that lower-rated filters let pass.
To reach ultra-fine efficiency without excessive airflow resistance, MERV 16 products use engineered media blends such as electrostatic synthetic microfibers, micro-glass fibers, or nanofiber coatings laid in progressively denser layers.
Residential units often rely on deep-pleated panels that slide into standard filter tracks, while commercial applications favor V-bank cassettes or multi-pocket bag filters for larger air-handling units.
Each design maximizes surface area, keeping pressure drop manageable as long as the HVAC fan and duct system are sized for higher resistance. When correctly installed and gasket-sealed, MERV 16 filters deliver near-HEPA performance in conventional HVAC frames.

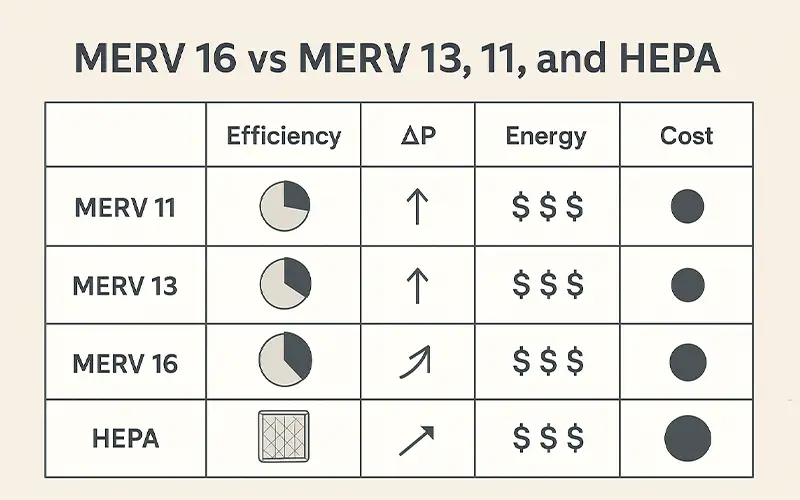

| Filter Type | 1–3 µm Efficiency | Initial ΔP | Energy Cost | Relative Price | Best Use Case |
|---|---|---|---|---|---|
| MERV 11 | ~60 % | 75 Pa | Low | Low | Allergy control, basic IAQ |
| MERV 13 | ≥90 % | 110 Pa | Moderate | Moderate | High-traffic offices, schools |
| MERV 16 | ≥95 % @ 0.3–1 µm | 180 Pa | High | High | Hospitals, labs, wildfire zones |
| HEPA | ≥99.97 % @ 0.3 µm | 250 Pa+ | Very High | Very High | Cleanrooms, isolation wards |
For most commercial buildings, MERV 13 balances strong particle capture and manageable pressure drop. MERV 11 suits budget-sensitive systems needing modest filtration upgrades.
MERV 16 approaches HEPA performance but demands larger fans or ECM motors. Reserve HEPA for environments where regulatory or medical standards require near-sterile air.
Clean-Link offers a range of high-performance air filtration products designed for office buildings. Our solutions are tailored to improve indoor air quality and employee comfort.

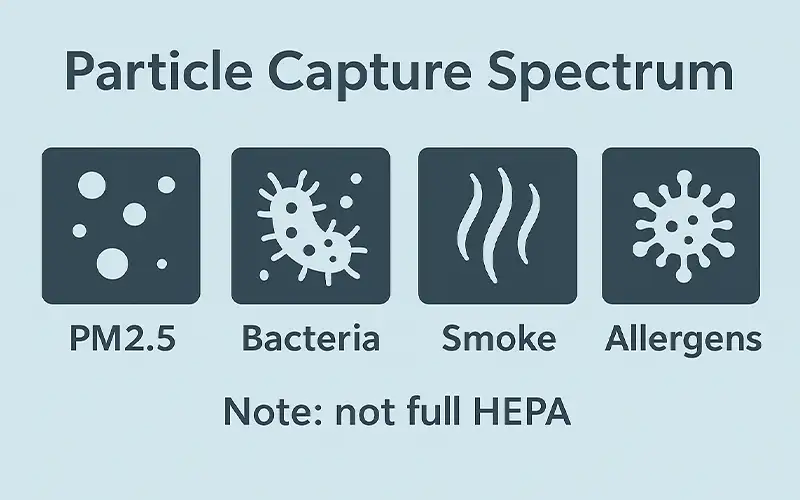

MERV 16 media captures at least 95 percent of particles between 0.3 and 1 micron, effectively removing wildfire smoke, fine diesel soot, and other PM 2.5 pollutants that penetrate deep into the lungs.
Many airborne bacteria fall within the 0.5–1 micron range. By trapping these micro-organisms, a MERV 16 filter reduces the spread of respiratory pathogens in crowded buildings such as schools and clinics.
Larger allergens—including mold spores, pollen grains, and pet dander—are easily intercepted, improving comfort for allergy-prone occupants and enhancing overall indoor-air quality.
While MERV 16 removes the vast majority of harmful particles, it stops short of HEPA’s 99.97 percent efficiency at 0.3 microns. Facilities requiring surgical-grade or cleanroom air should still specify certified HEPA filters, but MERV 16 offers a strong, cost-effective middle ground for most commercial IAQ goals.

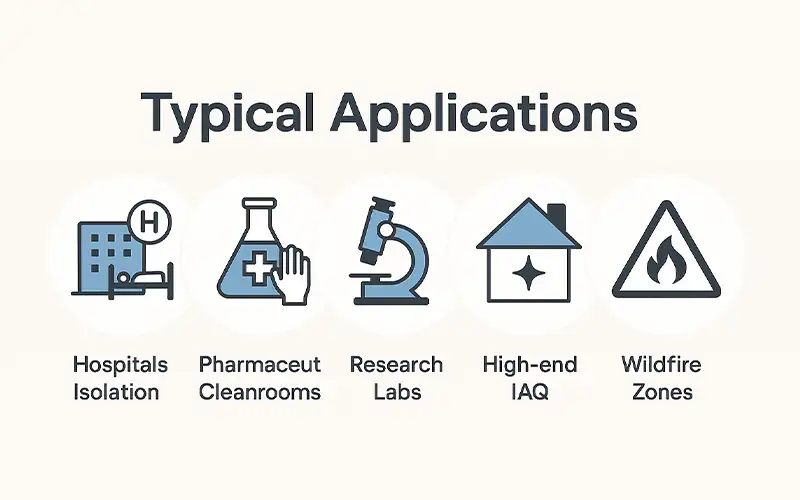

Negative-pressure wards and airborne infection isolation rooms rely on MERV 16 filters to block 0.3–1 µm pathogens, protecting adjacent corridors and nursing stations.
Before final HEPA banks, MERV 16 pre-filters capture ultra-fine powders and microbials, extending expensive HEPA life while meeting GMP and USP 800 guidelines.
University and biotech labs use MERV 16 filtration to maintain low particle counts that safeguard sensitive instruments and prevent cross-contamination.
Luxury homes with dedicated fresh-air systems adopt MERV 16 panels to filter wildfire smoke, diesel exhaust, and allergens without the cost of full HEPA retrofits.
Public buildings in smoke-affected regions install MERV 16 cassettes to keep PM 2.5 below health-advisory thresholds, maintaining safe occupancy during fire season.
MERV 16 media introduces an initial pressure drop of 170–200 Pa—roughly double that of MERV 13. Fans must be sized or upgraded to overcome this resistance without sacrificing airflow, often requiring larger impellers or higher-horsepower motors.
Electronically commutated motors (ECMs) automatically adjust speed to maintain target cfm while minimizing watt draw, offsetting some of the energy penalty. Variable-frequency drives (VFDs) on larger centrifugal fans fine-tune motor rpm, ensuring the system runs only as hard as necessary as filters load.
Although MERV 16 filters cost more and raise energy use by 5-15 %, lifecycle analyses often reveal a payback when factoring in reduced illness-related absenteeism, extended HEPA life, and compliance with health or clean-manufacturing standards. A typical model multiplies yearly fan-power savings from ECM/VFD optimization against filter and installation costs to establish total cost of ownership.
Verify that housings can accept 4- to 6-inch deep pleated or V-bank cartridges. Shallow 1-inch slots will choke airflow and raise pressure drop beyond safe limits.
Install closed-cell foam or neoprene gaskets on the filter frame and rack flanges. Tighten cam-locks or clips to compress evenly; gaps as small as 1 mm allow unfiltered air to bypass the media.
Perform a visual smoke or fluorescent aerosol test after installation. Smoke should flow uniformly through the filter face with no streaks around the perimeter—confirming a leak-free seal.
Compare the system’s existing fan curve with the added 170-200 Pa of MERV 16 resistance. If operating points fall off the curve, upgrade to larger wheels, ECM motors, or variable-frequency drives to maintain design airflow without overloading the motor.

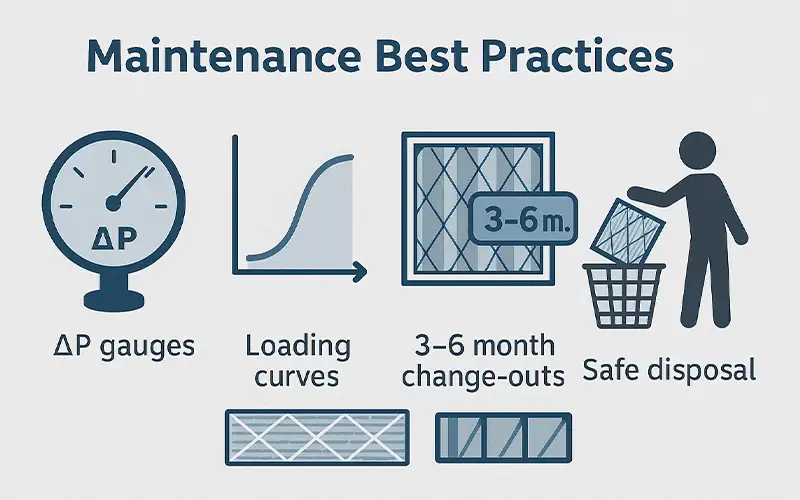

Mount ΔP gauges or transmitters across every MERV 16 bank and log readings weekly. Plot the data to create loading curves; when pressure rises 75–100 Pa above the clean baseline, schedule a change-out.
In most commercial applications, MERV 16 filters reach that threshold within 3–6 months, depending on particle load and fan speed. Avoid calendar-only replacement; rely on pressure data to balance energy use with filter life.
Shut down fans, don PPE, and bag used filters immediately to prevent dust release. Seal bags before transport to trash or an approved landfill. For healthcare or pharma sites, follow facility biohazard protocols, labeling bags and tracking disposal per regulatory requirements.
Installing MERV 16 filters can accelerate key building certifications. Under LEED v4 EQc Enhanced Indoor Air Quality, high-efficiency filtration helps projects meet PM 2.5 targets and earn Indoor Environmental Quality credits.
In the WELL Building Standard feature A05, MERV 16 satisfies the filtration performance threshold and supports A12 ongoing IAQ monitoring by keeping ultrafine particles in check. For healthcare and compounding pharmacies, MERV 16 pre-filtration also aids USP 800 compliance by capturing hazardous drug aerosols before air reaches HEPA exhaust stages, ensuring negative-pressure rooms maintain clean, safe working conditions.
Upgrading to MERV 16 filters delivers near-HEPA particle removal, boosts occupant health, and can unlock LEED or WELL credits—all without a full clean-room overhaul.
Start by assessing your HVAC system’s fan curve and rack depth to ensure it can handle the higher pressure drop. Next, map current ΔP readings and energy use for a baseline.
Consult a qualified filtration specialist to size the proper media, gaskets, and fan upgrades needed for seamless integration.
